MCP4706 is a single channel, 8-bit, voltage output Digital-to-Analog Converter with integrated EEPROM and an I2C Compatible Serial Interface.

The MCP47X6 DAC family offers integrated non-volatile memory (EEPROM) which allows DAC register and  configuration bit values to be saves at powered off. The VREF pin or the device VDD can be selected as the DAC’s reference voltage. Power-Down modes enable system current reduction when the DAC output voltage is not required. These devices are available in small 6-pin SOT-23 and DFN 2x2 mm packages.

  Output Voltage Resolutions

  8-bit: MCP4706

  Rail-to-Rail Output

  Fast Settling Time of 6 µs (typical)

  DAC Voltage Reference Options

  VDD

  VREF

  Output Gain Options

  Unity (1x)

  2x, only when VREF is used as voltage source

  Non-Volatile Memory (EEPROM)

  Auto Recall of Saved DAC register setting

  Auto Recall of Saved Device Configuration(Voltage Reference, Gain, Power Down)

  Power-Down Modes

  Disconnects output buffer

  Selection of VOUT pull-down resistors

(640 kohm, 125 kohm, or 1 kohm)

  Low Power Consumption

  Normal Operation: 210 µA typ.

  Power Down Operation: 60 nA typ.(PD1:PD0 = “11”)

  Single-Supply Operation: 2.7V to 5.5V

  I2C™ Interface:

  Eight Available Addresses

  Standard (100 kbps), Fast (400 kbps), andHigh-Speed (3.4 Mbps) Modes

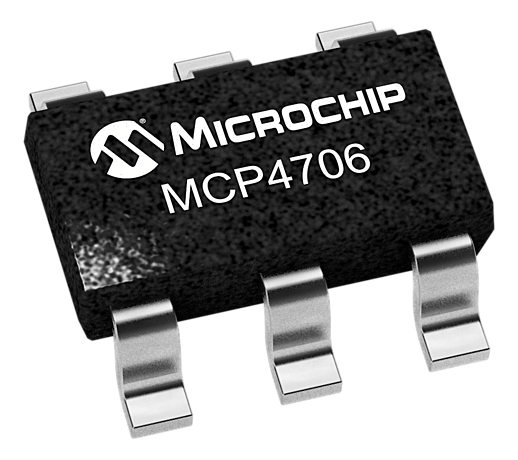

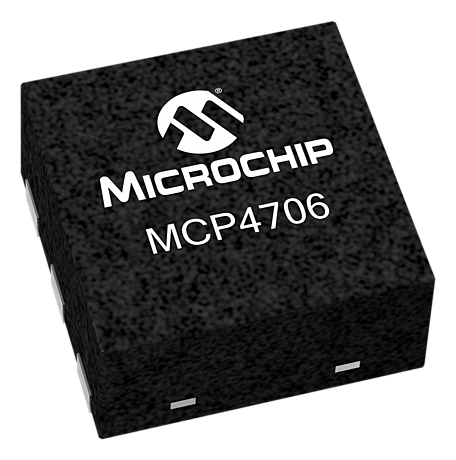

  Small 6-lead SOT-23 and DFN (2x2) Packages

  Extended Temperature Range: -40°C to +125°C

  AEC-Q100 Grade 1 quarlified
