MCP41HV31 is a single-channel, high voltage digital potentiometer (Digipot) family that supports 10V ~36V or +/-5V to +/-18V power rails. It features 7-bit resolution with SPI interface. This family is available in TSSOP-14 and QFN-20 (5x5) packages and has 5kΩ, 10 kΩ, 50 kΩ, and 100 kΩ end-to-end resistance(RAB) options . All parts are guaranteed to operate over  –40°C to +125°C extended temperature range.

Microchip's MCP41HVX1 and MCP45HVX1 digital potentiometer (Digipot) families offer the widest operating voltage range that is currently available on the market.

  High-Voltage Analog Support:

  +36V Terminal Voltage Range (DGND = V–)

  ±18V Terminal Voltage Range(DGND = V– + 18V)

  Wide Operating Voltage:

  Analog: 10V to 36V (specified performance)

  Digital: 2.7V to 5.5V

      1.8V to 5.5V (DGND >= V- + 0.9V)

  Resistor Network Resolution

  7-bit: 127 Resistors (128 Taps)

  RAB Resistance Options:

  5kΩ

  10kΩ

  50kΩ

  100kΩ

  High Terminal/Wiper Current (IW) Support:

  25 mA (for 5kΩ)

  12.5 mA (for 10 kΩ)

  6.5 mA (for 50 kΩ and 100 kΩ)

  Zero-Scale to Full-Scale Wiper Operation

  Low Wiper Resistance: 75Ω (Typical)

  Low Tempco:

  Ratiometric (Potentiometer): 15 ppm Typical

  SPI Serial Interface(10 MHz, Modes 0,0 and 1,1)

  Resistor Network Terminal Disconnect Via:

  Shutdown Pin (SHDN)

  Terminal Control (TCON) Register

  Write Latch (WLAT) Pin to control update of Volatile Wiper Register (such as Zero Crossing)

  Power-On Rest / Brown-Out Reset for both:

  Digital Supply (VL/DGND); 1.5V Typical

  Analog Supply (V+ / V-); 3.5V Typical

  Serial Interface Inactive Current (3 µA Typical)

  3dB Bandwidth: 500 kHz Typical (5.0 kΩ Device)

  Extended Temperature Range (-40°C to +125°C)

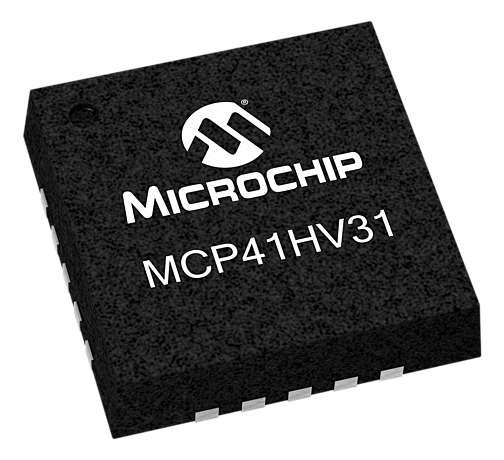

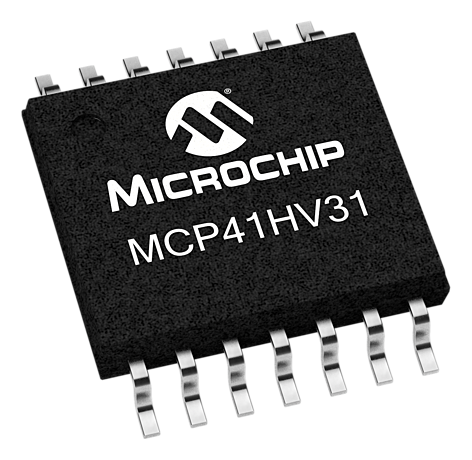

  Package Types: TSSOP-14 and QFN-20 (5x5)
