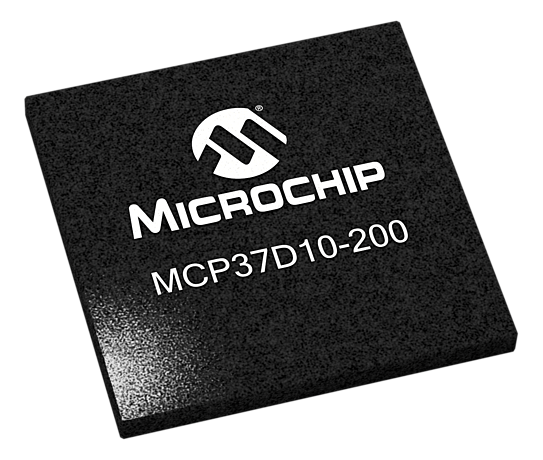

The MCP37D10-200 is a 12-bit pipelined A/D converter with a maximum sampling rate of 200 Msps. The high accuracy of over 67 dB Signal-to-Noise Ratio (SNR) and 96 dB Spurious Free Dynamic Range (SFDR) enable high precision measurements of fast input signals. The device operates at very low power consumption of 338 mW at 200 Msps including LVDS digital I/O. Lower power saving modes are available at 80 mW for Standby and 33 mW for Shutdown. The MCP37D10-200 includes many digital processing features that simplify system design, cost and power usage. These include an integrated digital down-converter with onboard NCO, decimation filters for improved SNR, and phase, offset and gain adjustment. Data is available through the serial DDR LVDS or parallel CMOS interface and configured via SPI. The device is available in the TFBGA-121 and VTLA-124 packages.

12-bit resolution

200 Msps maximum sampling rate

Low power 338 mW operation at full sampling rate, including LVDS digital I/O

Power saving modes of 80 mW during Standby and 33 mW during Shutdown

67 dBFS SNR at 200 Msps

96 dBFS SFDR at 200 Msps

Integrated digital down-converter

Decimation filters for improved SNR

Phase, offset and gain adjustment

Noise-shaping requantizer

Input channel bandwidth of 650 MHz

Output data format in serial DDR LVDS or parallel CMOS

Configuration via Serial Peripheral Interface (SPI)

Industrial temperature range -40°C to +85°C

Available in TFBGA-121 and VTLA-124 packages
