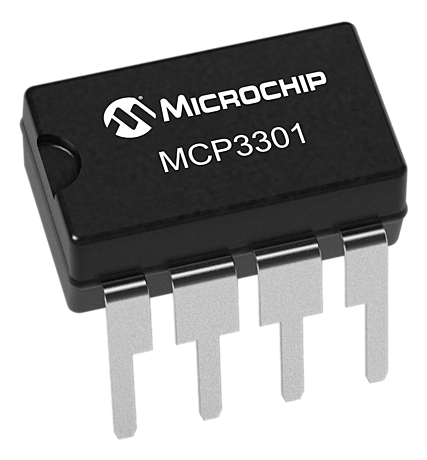

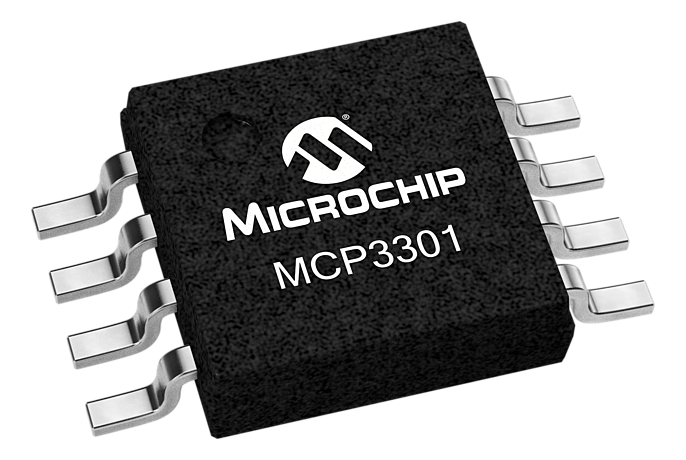

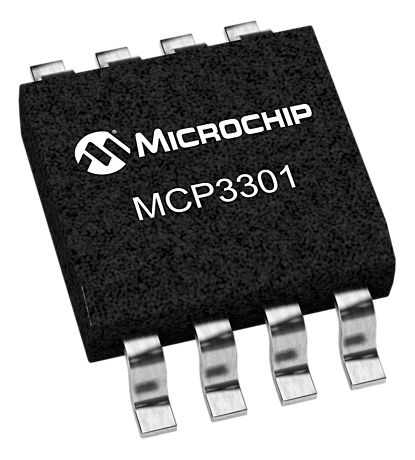

The MCP3301 13-bit Analog to Digital Converter (ADC) features a full differential input and low power consumption in a small package that is ideal for battery powered systems and remote data acquisition applications.The industry-standard SPI™ serial interface enables 13-bit ADC capability to be added to any PICmicro® microcontroller.The MCP3301 features 100k samples/second, 1 input channel, low power consumption (300 nA typical standby, 450µA maximum active), and is available in 8-pin PDIP, SOIC and MSOP packages.The full differential input of the MCP3301 enables a wide variety of signals to be used in applications such as remote data acquisition, portable instrumentation, and battery operated applications.

   13-bit resolution

   Differential input

   SPI interface

   ±1 LSB DNL

   ±1 LSB INL

   100 ksps sample

   -40 to +85°C temperature range

  AEC-Q100Grade 3
