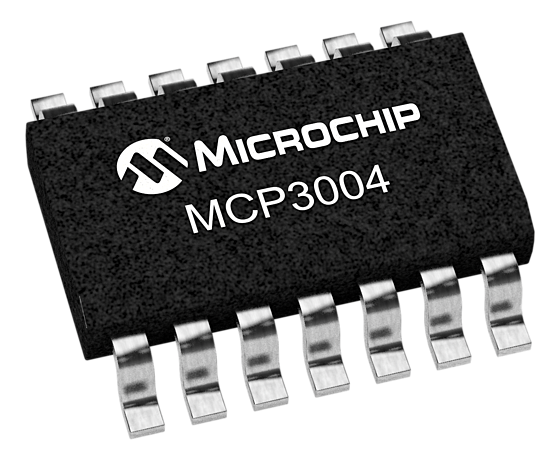

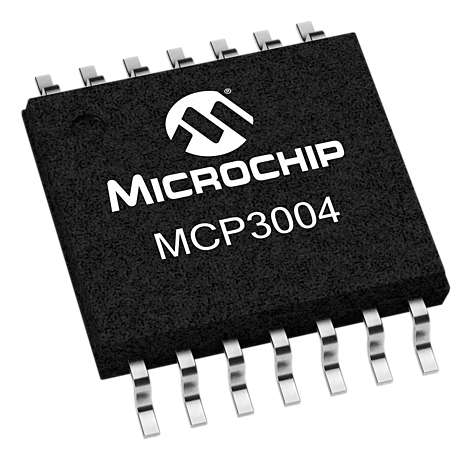

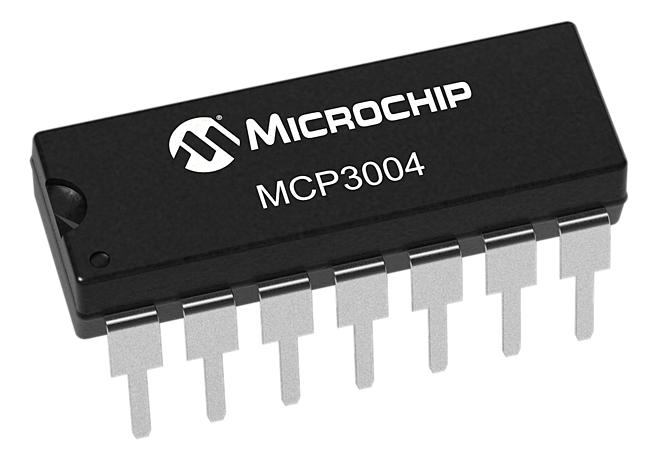

The MCP3004 10-bit Analog-to-Digital Converter (ADC) combines high performance and low power consumption in a small package, making it ideal for embedded control applications. The MCP3004 features a successive approximation register (SAR) architecture and an industry-standard SPI serial interface, allowing 10-bit ADC capability to be added to any PIC® microcontroller. The MCP3004 features 200k samples/second, 4 input channels, low power consumption (5nA typical standby, 425µA typical active), and is available in 14-pin PDIP, SOIC and TSSOP packages. Applications for the MCP3004 include data acquisition, instrumentation and measurement, multi-channel data loggers, industrial PCs, motor control, robotics, industrial automation, smart sensors, portable instrumentation and home medical appliances.

   10-bit resolution

   Four single-ended channels

   SPI interface

   ±1 LSB DNL

   ±1 LSB INL

   200 ksps sample rate at 5V

   -40 to +85°C temperature range

  AEC-Q100Grade 3
