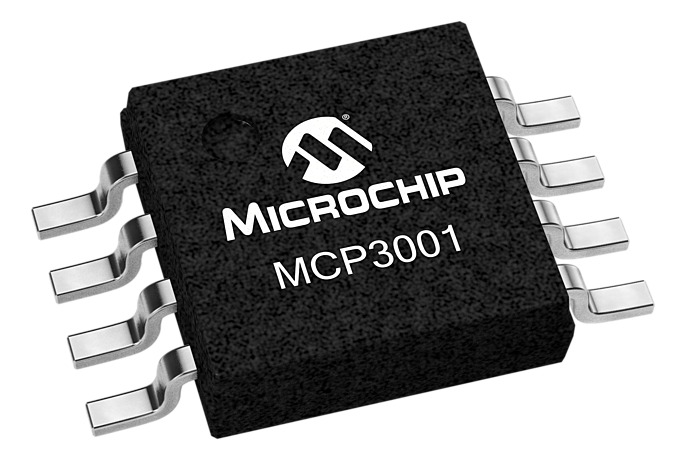

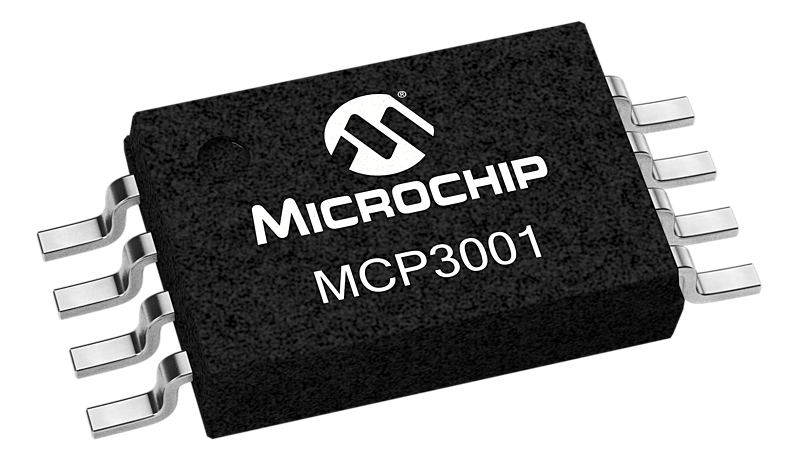

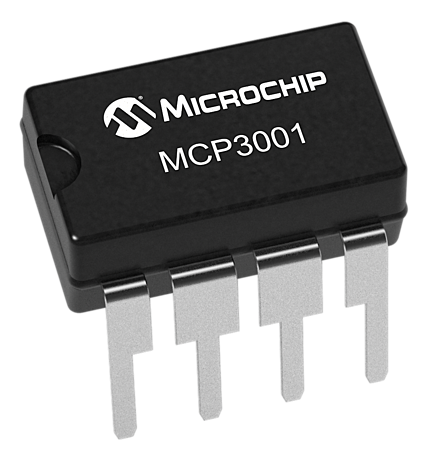

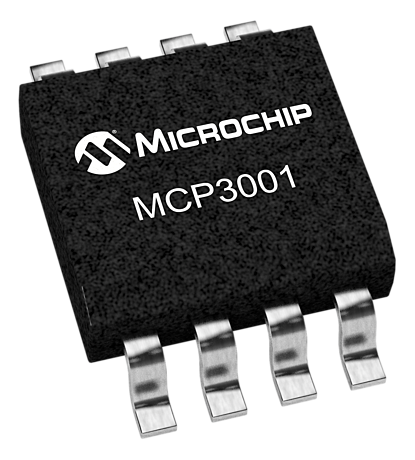

The MCP3001 10-bit Analog-to-Digital Converter (ADC) combines high performance and low power consumption in a small package, making it ideal for embedded control applications. The MCP3001 features a successive approximation register (SAR) architecture and an industry-standard SPI serial interface, allowing 10-bit ADC capability to be added to any PIC® microcontroller. The MCP3001 features 200k samples/second, 1 input channel, low power consumption (5nA typical standby, 400µA typical active), and is available in 8-pin PDIP, SOIC and TSSOP packages. Applications for the MCP3001 include data acquisition, instrumentation and measurement, multi-channel data loggers, industrial PCs, motor control, robotics, industrial automation, smart sensors, portable instrumentation and home medical appliances.

  10-bit resolution

  Single channel

  SPI interface

  ±1 LSB DNL

  ±1 LSB INL

  200 ksps sample rate at 5V

  -40 to +85°C temperature range

  AEC-Q100 Grade 3
