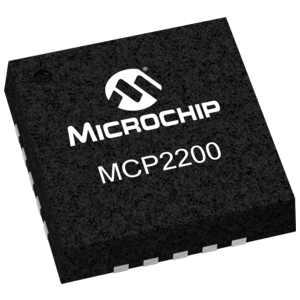

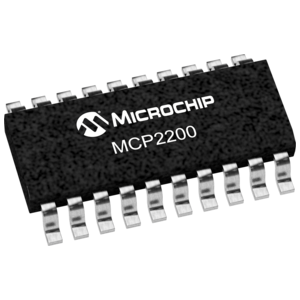

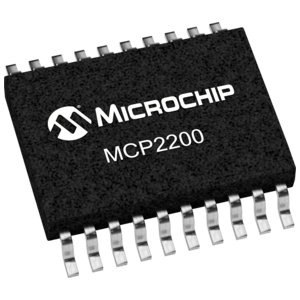

The MCP2200 is a USB-to-UART serial converter which enables USB connectivity in application that have a UART interface. The device reduces external components by integrating the USB termination resistors. The MCP2200 also has 256-bytes ofintegrated user EEPROM. The MCP2200 has eight general purpose input / output pins. Four of the pins have alternate functions to indicate USB and communication status.

Universal Serial Bus (USB)

  Supports Full-Speed USB (12 Mb/s)

  Implements USB Protocol Composite Device CDC Device (communications and control).

  Class 02h - CDC: USB-to-UART communications and I/O control

  Class 03h - HID: I/O control, EEPROM access, and initial configuration

  128 byte buffer to handle data throughput at any UART baud rate.

  64 byte transmit

  64 byte receive

  Fully configurable VID and PID assignments, and string descriptors

  Bus Powered or self powered USB Driver and Software Support

  Royalty-free drivers for Virtual Com Port (VCP)

  Windows XP(SP2 and later)/Vista/7

  Configuration utility for initial configuration

Universal Asynchronous Receiver/Transmitter (UART)

  Support baud rates: 300 - 1000k (baud)

  Hardware flow control

  UART signal polarity option General Purpose Input/Output (GPIO) Pins

  Eight (8) general purpose I/O pins

EEPROM

  256 bytes of user EEPROM

Other

  USB activity LED outputs (TxLED and RxLED)

  SSPND output pin

  ULOAD output pin (indicates if requested current was allowed).

  Operating voltage: 3.0 - 5.5 (V)

  Oscillator input: 12 MHz

  ESD protection > 4kV HBM

  Industrial (I) Operating Temperature: -40°C to +85°C
