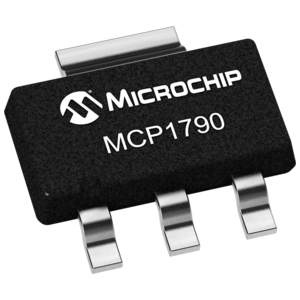

The MCP1790 is a 70 mA, ceramic output cap stable, high voltage, Low Dropout Regulator (LDO). The MCP1790 is capable of handling continuous input voltage of up to 30V and is load dump protect for up to 48V, making it especially suitable for automotive as well as 12V/24V industrial applications. The MCP1790 comes in thermally enhanced DDPAK-3 package as well as space-efficient SOT223-3 package. For shutdown and powergood options, see MCP1791

  Wide steady state supply voltage: 6.0V - 30.0V

  48V (43.5V ±10%) load dump protected for 180ms with a 30 second repetition rate

  70 mA output current

  Low quiescent current: 70 µA typical

  Fixed output voltages: 3.0V, 3.3V, 5.0V

  Extended Junction Temperature Range: -40 to +125°C

  Output Voltage Tolerances of ±2.5% over the temperature range

  Short Circuit Current Foldback

  High PSRR, -90 dB@100 Hz (typical)
