The MCP1702 is a CMOS low dropout positive voltage regulator with 250 mA maximum output current. MCP1702 works with input voltage of up to 13.2V and in combination with its low current consumption of 2 µA is an ideal solution for applications using multi-cell, 9V alkaline or one- or two cell lithium-ion batteries.

  2.0 µA quiescent current (typical)

  Wide input operating voltage range: 2.7V to 13.2V

  High output current capability

  250 mA Output Current for Output Voltages = 2.5V

  200 mA Output Current for Output Voltages < 2.5V

  Output voltage range 1.2V to 5.5V in 0.1V increments (50 mV increments available upon request)

  Stable with 1.0 µF to 22 µF ceramic, aluminum, or tantalum output capacitors

  Short-circuit protection

  Overtemperature protection

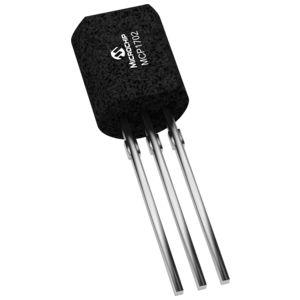

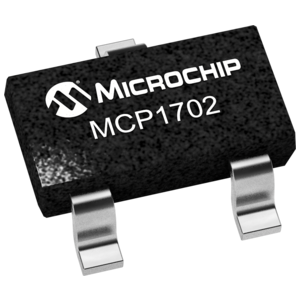

  Package options: 3-Pin SOT-23A, 3-Pin SOT-89,TO-92-3
