The MCP16331 is a highly integrated, high-efficiency, fixed frequency, step-down DC-DC converter in a popular 6-pin SOT-23 or 8-pin TDFN 2x3 package that operates from input voltage sources up to 50V. Integrated features include a high side switch, fixed frequency Peak Current Mode Control, internal compensation, peak current limit and overtemperature protection. Minimal external components are necessary to develop a complete step-down DC-DC converter power supply.

  Up to 96% Efficiency

  Input Voltage Range: 4.4V to 50V

  Output Voltage Range: 2.0V to 24V

  2% Output Voltage Accuracy

  Minimum 500 mA Output Current

  500 kHz Fixed Frequency

  Adjustable Output Voltage

  Low Device Shutdown Current: 6 uA

  Peak Current Mode Control

  Internal Compensation

  Internal Soft-Start

  Cycle-by-Cycle Peak Current Limit

  Undervoltage Lockout (UVLO): 4.1V to Start; 3.6V to Stop

  Overtemperature Protection

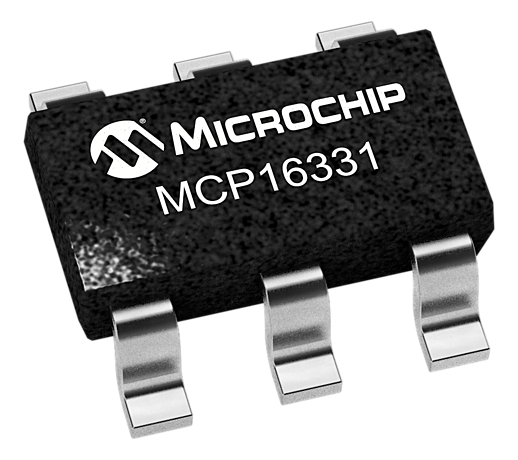

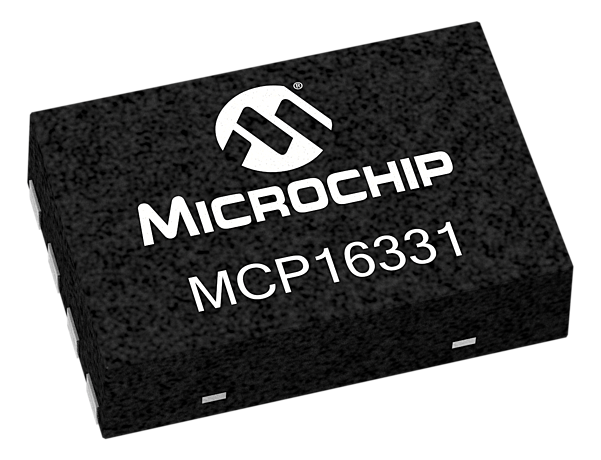

  Available Package: 6-Lead SOT-23, 8-Lead 2x3 TDFN
