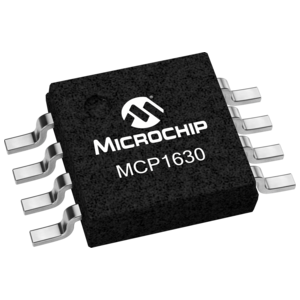

The MCP1630 is a high-speed Pulse Width Modulator (PWM) used to develop intelligent power systems.When used with a microcontroller,the MCP1630 will control the power system duty cycle to provide output voltage or current regulation.The MCP1630 inputs are designed to be easily attached to the I/O of a microcontroller, which supplies the reference and oscillator to the MCP1630, to generate a flexible and adaptable power system.

  12 nS Current Sense-to-Output delay

  Fast Rise and Fall times: 5.9 nS and 6.2 nS

  Precise Peak Current Limit (±5%)

  Low Operating Current:2.8 mA, typical

  Under Voltage Lockout (UVLO)

  Over-Temperature protection

  Space Saving MSOP-8 Package

  Extended Temperature Range (-40°C to +125°C)
