The MCP1501 is a high-precision buffered voltage referencewith an initial accuracy of 0.10% and is available in 8 voltage options. The MCP1501is a low-drift bandgap-based reference and uses chopper-based amplifiers whichsignificantly reduces the drift and provides high current output.  The MCP1501 is available in a very small 2x2 WDFN package, as well as the SOT-23 and SOIC packages.

   Maximum Temperature Coefficient: 50 ppm/°C from -40°C to +125°C

   Initial Accuracy: 0.10%

   Operating Temperature Range: -40 to +125°C

   Line Regulation: 50 ppm/V maximum

   Load Regulation: 40 ppm/mA maximum

   Low Typical Operating Current: 140 μA

   8 Voltage variants available:  - 1.024V  - 1.250V  - 1.800V  - 2.048V  - 2.500V  - 3.000V  - 3.300V  - 4.096V

   Output Noise (0.1 Hz to 10 Hz): 0.1 μVP-P

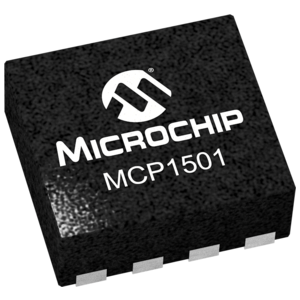

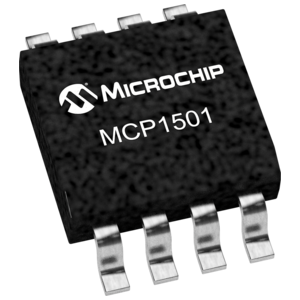

   Packages: 8L 2x2 WDFN, 6L SOT-23, 8L SOIC

  AEC-Q100 Capable
