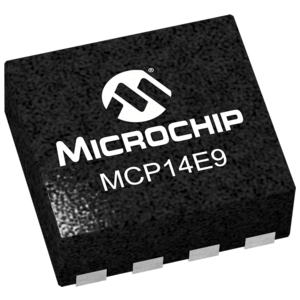

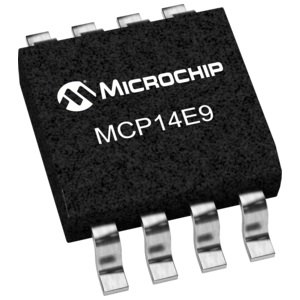

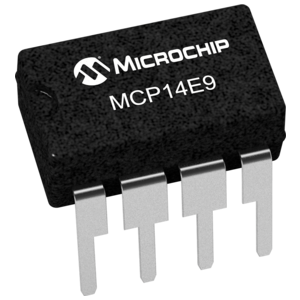

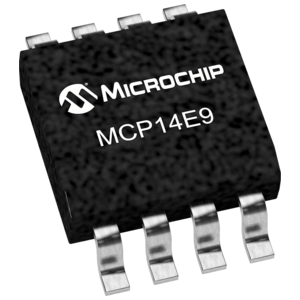

The MCP14E9/E10/E11 devices are a family of 3A,dual outputbuffers/MOSFET drivers with seperate enable functions for each output. As MOSFET drivers, the MCP14E9/E10/E11can charge 1800 pF gate capacitance in under 25 nsec (max).The inputs are TTL/CMOS compatiple and provide 300 mV of hysteresis between the high and low input levels that allows it to be driven from slow rising and falling signals and provide noise immunity.

   High peak output Current: 3A (typ)

   Independent Enable Function for each Driver

   Low Shoot-Through/Cross-Conduction Current in output Stage

   Wide input supply Operating Range: 4.5v to 18V

   High Capacitive Load drive Capability:

  1800 pF in 20 nsec (typ)

   Short Delay Times: 40 nsec(typ)

   Matched rise/fall Times

   Low output Impedance: 2.2 Ohms (typ)

   Latch-up Protected: Will withstand 1.5A Reverse Current

   Input are TTL/CMOS compatiple and will withstand negativeswings Up To 5V

   ESD Protected: 4kV
