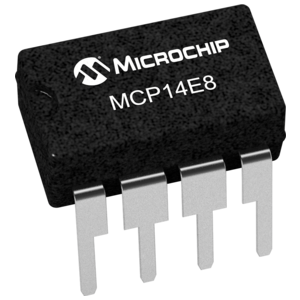

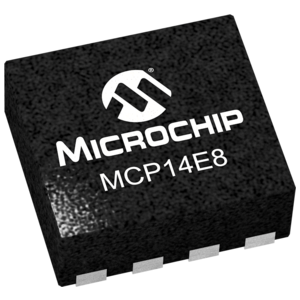

The MCP14E6/E7/E8 devices are a family of 2A,dual outputbuffers/MOSFET drivers with seperate enable functions for each output. As MOSFET drivers, the MCP14E6/E7/E8 can charge 1000 pF gate capacitance in under 20 nsec (max).The inputs are TTL/CMOS compatible and provide 300 mV of hysteresis between the high and low input levels that allows it to be driven from slow rising and falling signals and provide noise immunity.

   High peak output Current: 2A (typ)

   Independent Enable Function for each Driver

   Low Shoot-Through/Cross-Conduction Current in output Stage

   Wide input supply Operating Range: 4.5v to 18V

   High Capacitive Load drive Capability:

  1000 pF in 15 nsec (typ)

   Short Delay Times: 40 nsec(typ)

   Matched rise/fall Times

   Low output Impedance: 2.2 Ohms (typ)

   Latch-up Protected: Will withstand 1.5A Reverse Current

   Input are TTL/CMOS compatiple and will withstand negativeswings Up To 5V

   ESD Protected: 4kV
