The MCP1316/16M/17/18/18M/19/19M/20/21/22 are voltage supervisor devices designed to keep a microcontroller in reset until the system voltage has reached and stablized at a proper level for reliable system operation. These devices also protect from brown-out conditions when the system supply voltage drops below the specified threshold voltage level.

  4.7k Pull-up on Output

   Low supply current

   Precision monitoring trip point options of 2.0V to 4.7V (100 mV increment)

   Reset microcontroller in a power loss event

   Reset delay timer (1.4 ms, 30 ms, 200 ms, 1600 ms)

   Watchdog timer input (6.3 ms, 102 ms, 1600 ms, 25600 ms)

  Manual Reset Input (Active Low)

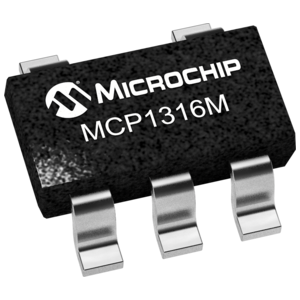

   SOT-23-5 Pb-free packaging
