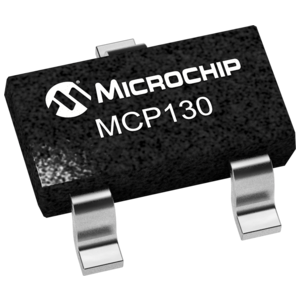

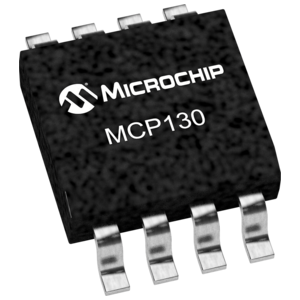

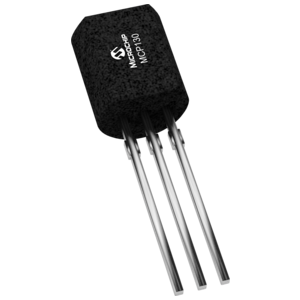

The MCP130 is a voltage supervisory device designed to keep a microcontroller in reset until the system voltage has reached the proper level and stabilized. It also operates as protection from brown-out conditions when the supply voltage drops below a safe operating level. MCP130 features an open drain output with internal 5K ohm internal pull-up resistor. MCP130 has active low reset and is available in a choice of seven different trip voltages. It operates over the extended industrial temperature range (-40°C/+85°C). MCP130 is available in a TO-92, SOT23-3, and SN packages.

  Holds microcontroller in reset until supply voltage reaches stable operating level

  Resets microcontroller during power loss

  Precision monitoring of 3V, 3.3V and 5V systems

  7 voltage trip points available

  Active low RESET pin

  Open drain output

  Internal pull-up resistor (5 kohm) for MCP130

  Holds RESET for 350ms (typical)

  RESET to VCC = 1.0V

  Accuracy of +(-)125mV for 5V systems and +(-)75mV for 3V systems over temp

  45uA typical operating current

  Temperature range:

  Industrial (I): -40C to +85C
