MC74ACT564

 Octal D Latch with 3-State Outputs

制造商：ON

中文资料及数据手册

在线购买

产品信息

The MC74ACT564 is a high–speed, low power octal flip–flop with a buffered common Clock (CP) and a buffered common Output Enable (OE).The information presented to the D inputs is stored in the flip–flops on the LOW–to–HIGH Clock (CP) transition.The MC74ACT564 device is functionally indentical to the MC74ACT574, but with inverted outputs.
  • Inputs and Outputs on the Opposite Sides of the Package Allowing Easy Interface with Microprocessors
  • Useful as Input or Output Port for Microprocessor
  • Functionally Indentical to the MC74ACT574 but with Inverted Outputs
  • 3-State Outputs for Bus-Oriented Applications
  • Outputs Source Sink 24 mA
  • TTL Compatible Inputs
  • Pb-Free Packages are Available

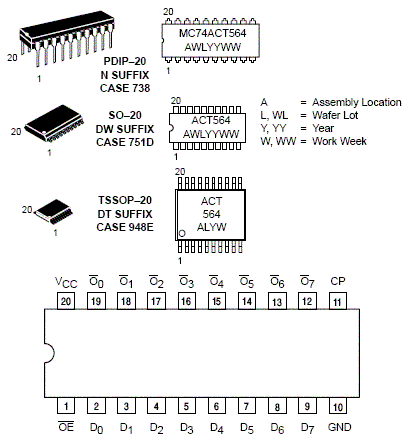

电路图、引脚图和封装图
