MC74AC05

 Hex Inverter Open-Drain

制造商：ON

中文资料及数据手册

在线购买

产品信息

The MC74AC/ACT05 is identical in pinout to the LS05. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with TTL outputs.
  • Outputs Source/Sink 24 mA
  • ACT05 Has TTL Compatible Inputs
  • Pb-Free Packages are Available

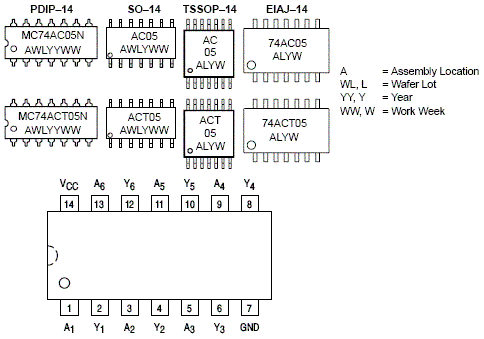

电路图、引脚图和封装图

    MC74AC05电路图
