MC3302

 Comparator, Quad, Single Supply

制造商：ON

中文资料及数据手册

在线购买

产品信息

This comparator is designed for use in level detection, low-level sensing and memory applications in consumer automotive and industrial electronic applications.
  • Single or Split Supply Operation
  • Low Input Bias Current: 25 nA (Typ)
  • Low Input Offset Current:+/- 5.0 nA (Typ)
  • Input Common Mode Voltage Range to Gnd
  • Low Output Saturation Voltage: 130 mV (Typ) @ 4.0 mA
  • TTL and CMOS Compatible
  • ESD Clamps on the Inputs Increase Reliability without Affecting Device Operation

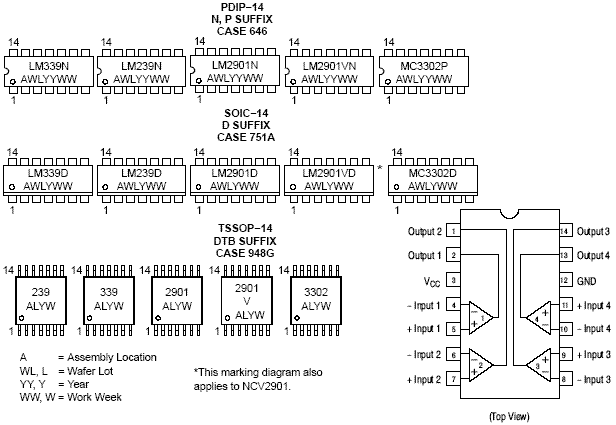

电路图、引脚图和封装图

    MC3302电路图
