The MC14572UB hex functional gate is constructed with MOS P-channel and N-channel enhancement mode devices in a single monolithic structure. These complementary MOS logic gates find primary use where low power dissipation and/or high noise immunity is desired. The chip contains four inverters, one NOR gate and one NAND gate.

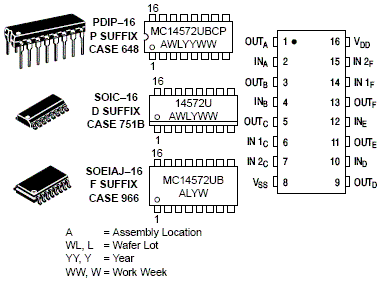

• Diode Protection on All Inputs
• Single Supply Operation
• Supply Voltage Range = 3.0 Vdc to 18 Vdc
• NOR Input Pin Adjacent to V
• Pin to Simplify Use As An Inverter
• NAND Input Pin Adjacent to V
• Pin to Simplify Use As An Inverter
• NOR Output Pin Adjacent to Inverter Input Pin For OR Application
• NAND Output Pin Adjacent to Inverter Input Pin For AND Application
• Capable of Driving Two Low-power TTL Loads or One Low-Power Schottky TTL Load over the Rated Temperature Range
• Pb-Free Packages are Available
