The MC14569B is a programmable divide-by-N dual 4-bit binary or BCD down counter constructed with MOS P-channel and N-channel enhancement mode devices (complementary MOS) in a monolithic structure.
This device has been designed for use with the MC14568B phase comparator/counter in frequency synthesizers, phase-locked loops, and other frequency division applications requiring low power dissipation and/or high noise immunity.

• Speed-up Circuitry for Zero Detection
• Each 4-Bit Counter Can Divide Independently in BCD or Binary Mode
• Can be Cascaded With MC14526B for Frequency Synthesizer Applications
• All Outputs are Buffered
• Schmitt Triggered Clock Conditioning

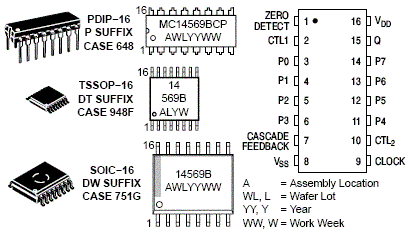

• Pb-Free Packages are Available*
