The MC14536B programmable timer is a 24-stage binary ripple counter with 16 stages selectable by a binary code. Provisions for an on-chip RC oscillator or an external clock are provided. An on-chip monostable circuit incorporating a pulse-type output has been included. By selecting the appropriate counter stage in conjunction with the appropriate input clock frequency, a variety of timing can be achieved.

• 24 Flip-Flop Stages - Will Count From 2
• to 2
• Last 16 Stages Selectable By Four-Bit Select Code
• 8-Bypass Input Allows Bypassing of First Eight Stages
• Set and Reset Inputs
• Clock Inhibit and Oscillator Inhibit Inputs
• On-Chip RC Oscillator Provisions
• On-Chip Monostable Output Provisions
• Clock Conditioning Circuit Permits Operation With Very Long Rise and Fall Times
• Test Mode Allows Fast Test Sequence
• Supply Voltage Range = 3.0 Vdc to 18 Vdc
• Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range

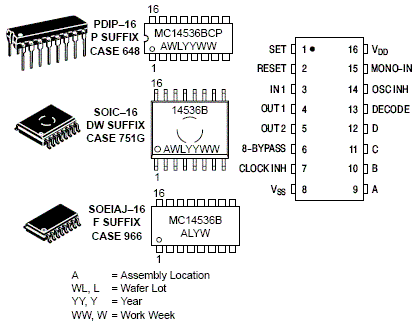

• Pb-Free Packages are Available
