MC14528B

 Dual Monostable Multivibrator

制造商：ON

中文资料及数据手册

在线购买

产品信息

The MC14528B is a dual, retriggerable, resettable monostable multivibrator. It may be triggered from either edge of an input pulse, and produces an output pulse over a wide range of widths, the duration of which is determined by the external timing components, C
and R
.
  • Separate Reset Available
  • Diode Protection on All Inputs
  • Triggerable from Leading or Trailing Edge Pulse
  • Supply Voltage Range = 3.0 Vdc to 18 Vdc
  • Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range
  • This part should only be used in new designs where the pulse width is
  • Note: For designs requiring a pulse width > 10 µs, please see the MC14538, which is pin-for-pin compatible.
  • Pb-Free Packages are Available

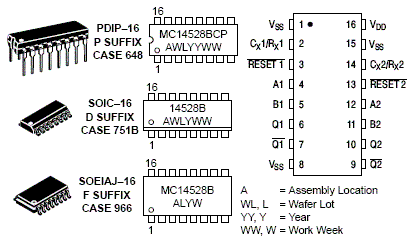

电路图、引脚图和封装图
