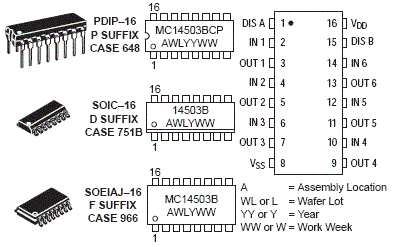

The MC14503B is a hex non-inverting buffer with 3-state outputs, and a high current source and sink capability. The 3-state outputs make it useful in common bussing applications. Two disable controls are provided. A high level on the Disable A input causes the outputs of buffers 1 through 4 to go into a high impedance state and a high level on the Disable B input causes the outputs of buffers 5 and 6 to go into a high impedance state.

• 3-State Outputs
• TTL Compatible - Will Drive One TTL Load Over Full Temperature Range
• Supply Voltage Range = 3.0 Vdc to 18 Vdc
• Two Disable Controls for Added Versatility
• Pin for Pin Replacement for MM80C97 and 340097
• Pb-Free Packages are Available
