MC14027B

 Dual JK Flip-Flop

制造商：ON

中文资料及数据手册

在线购买

产品信息

The MC14027B dual JK flip-flop has independent J, K, Clock (C), Set (S) and Reset (R) inputs for each flip-flop. These devices may be used in control, register, or toggle functions.
  • Diode Protection on All Inputs
  • Supply Voltage Range = 3.0 Vdc to 18 Vdc
  • Logic Swing Independent of Fanout
  • Logic Edge-Clocked Flip-Flop Design:Logic state is retained indefinitely with clock level either high or low;information is transferred to the output only on the positive-going edgeof the clock pulse
  • Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range
  • Pin-for-Pin Replacement for CD4027B
  • Pb-Free Packages are Available*

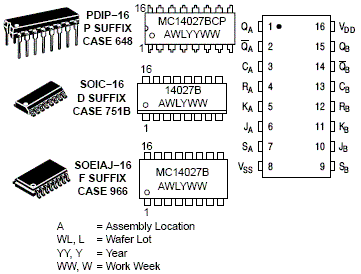

电路图、引脚图和封装图
