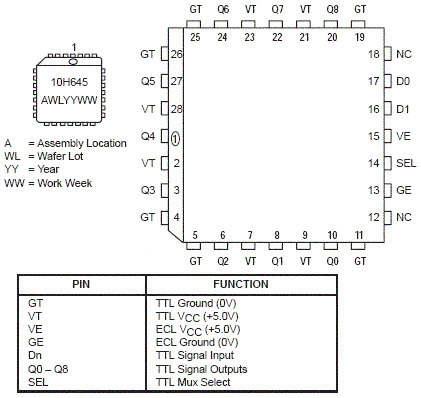

The MC10H645 is a single supply, low skew, TTL I/O 2:1:9 Clock Driver. Devices in the Motorola H600 clock driver family utiize the 28-lead PLCC for optimal power and signal pin placement.
The device features a 24mA TTL ouput stage with AC performance specified into a 50pF load capacitance. A 2:1 input mux is provided on chip to allow for distributing both system and diagnostic clock signals or designing clock redundancy into a system. With the SEL input held LOW the DO input will be selected, while the D1 input is selected when the SEL input is forced HIGH.

• Low Skew Typically 0.65ns Within Device
• Guaranteed Skew Spec 1.25ns Part-to-Part
• Input Clock Muxing
• Differential ECL Internal Design
• Single Supply
• Extra TTL and ECL Power/Ground Pins
• Pb-Free Packages are Available
