MC10H116

 Triple Line Receiver

制造商：ON

中文资料及数据手册

在线购买

产品信息

The MC10H116 is a triple differential amplifier designed for use in
sensing differential signals over long lines and is a functional/pinout
duplication of the MC10116, with 100% improvement in propagation
delay and no increase in power−supply current.
  • Propagation Delay, 1.0 ns Typical
  • Power Dissipation 85 mW Typ/Pkg (same as MECL 10K)
  • Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
  • Voltage Compensated
  • MECL 10K Compatible
  • Pb-Free Packages are Available

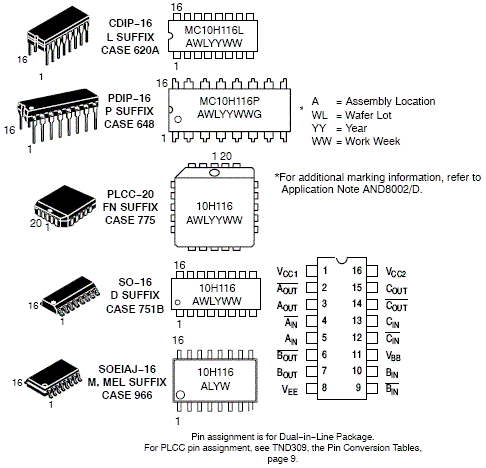

电路图、引脚图和封装图

    MC10H116电路图
