MC10H107

 Triple 2-Input XOR/XNOR Gate

制造商：ON

中文资料及数据手册

在线购买

产品信息

The MC10H107 is a triple 2-input exclusive OR/NOR gate. This MECL 10H part is a functional/pinout duplication of the standard MECL 10K family part, with 100% improvement in propagation delay, and no increase in power-supply current.
  • Propagation Delay, 1.0 ns Typical
  • Power Dissipation 35 mW/Gate Typical (same as MECL 10K)
  • Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
  • Voltage Compensated
  • MECL 10K Compatible
  • Pb-Free Packages are Available

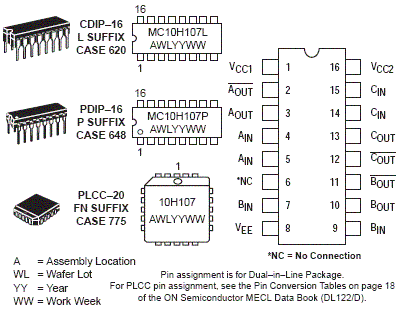

电路图、引脚图和封装图

    MC10H107电路图
