MC10H105

 Triple 2-3-2-Input OR/NOR Gate

制造商：ON

中文资料及数据手册

在线购买

产品信息

The MC10H105 is a triple 2-3-2-input OR/NOR gate. This MECL 10H part is a functional/pinout duplication of the standard MECL 10K family part, with 100% improvement in propagation delay, and no increases in power-supply current.
  • Propagation Delay, 1.0 ns Typical
  • Power Dissipation 25 mW/Gate (same as MECL 10K)
  • Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
  • Voltage Compensated
  • MECL 10K-Compatible
  • Pb-Free Packages are Available

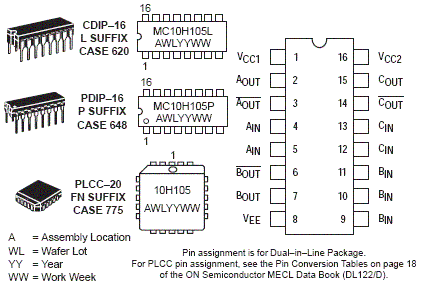

电路图、引脚图和封装图

    MC10H105电路图
