MC10H104

 Quad 2-Input AND Gate

制造商：ON

中文资料及数据手册

在线购买

产品信息

The MC10H104 is a quad 2-input AND gate. One of the gates has both AND/NAND outputs available. This MECL 10H part is a functional/pinout duplication of the standard MECL 10K family part, with 100% improvement in propagation delay, and no increase in power- supply current.
  • Power Dissipation 25 mW/Gate (same as MECL 10K)
  • Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
  • Voltage Compensated
  • MECL 10K-Compatible
  • Propagation Delay, 1.0 ns Typical
  • Pb-Free Packages are Available

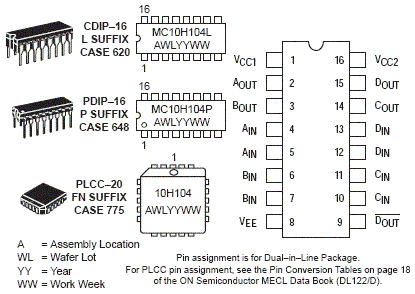

电路图、引脚图和封装图

    MC10H104电路图
