MC10H102

 Quad 2-Input NOR Gate

制造商：ON

中文资料及数据手册

在线购买

产品信息

The MC10H102 is a quad 2-input NOR gate. The MC10H102 provides one gate with OR/NOR outputs. This MECL 10H part is a functional/pinout duplication of the standard MECL 10K family part, with 100% improvement in propagation delay, and no increases in power- supply current.
  • Propagation Delay, 1.0 ns Typical
  • Power Dissipation 25 mW/Gate (same as MECL 10K)
  • Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
  • Voltage Compensated
  • MECL 10K Compatible
  • Pb-Free Packages are Available

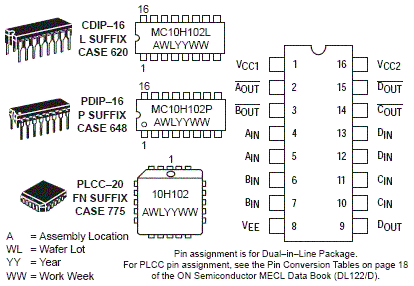

电路图、引脚图和封装图

    MC10H102电路图
