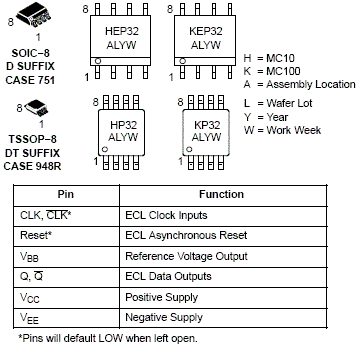

The MC10/100EP32 is an integrated divide by 2 divider with differential CLK inputs.
The V
pin, an internally generated voltage supply, is available to this device only. For single-ended input conditions, the unused differential input is connected to V
as a switching reference voltage. V
may also rebias AC coupled inputs. When used, decouple V
and V
via a 0.01μF capacitor and limit current sourcing or sinking to 0.5mA. When not used, V
should be left open.
The reset pin is asynchronous and is asserted on the rising edge. Upon power-up, the internal flip-flops will attain a random state; the reset allows for the synchronization of multiple EP32's in a system.
The 100 Series contains temperature compensation.

• 350ps Typical Propagation Delay
• Maximum Frequency > 4 GHz Typical
• PECL Mode Operating Range: V
• = 3.0 V to 5.5 V
• with V
• = 0 V
• NECL Mode Operating Range: V
• = 0 V
• with V
• = –3.0 V to –5.5 V
• Open Input Default State
• Safety Clamp on Inputs
• Q Output will default LOW with inputs open or at V
• Pb-Free Packages are Available
