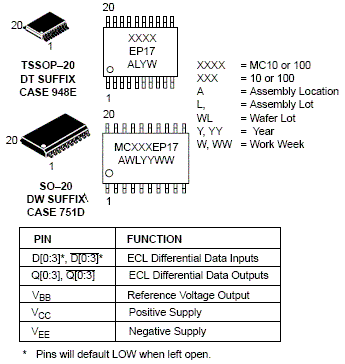

The MC10/100EP17 is a 4-bit differential line receiver based on the EP16 device. The >3.0 GHz maximum frequency provided by the high frequency outputs makes the device ideal for buffering of very high speed oscillators.
The V
pin, an internally generated voltage supply, is available to this device only. For single-ended input conditions, the unused differential input is connected to V
as a switching reference voltage. V
may also rebias AC coupled inputs. When used, decouple V
and V
via a 0.01uF capacitor and limit current sourcing or sinking to 0.5 mA. When not used, V
should be left open.
The design incorporates two stages of gain, internal to the device, making it an excellent choice for use in high bandwidth amplifier applications.
Inputs of unused gates can be left open and will not affect the operation of the rest of the device. All V
and V
pins must be externally connected to power supply to guarantee proper operation.
The 100 Series contains temperature compensation.

• 220ps Typical Propagation Delay
• Maximum Frequency >3.0 GHz Typical
• PECL Mode Operating Range: V
• = 3.0 V to 5.5 V with V
• = 0 V
• NECL Mode Operating Range: V
• = 0 V with V
• = -3.0 V to -5.5 V
• Open Input Default State
• Safety Clamp on Inputs
• Q Output Will Default LOW with Inputs Open or at V
• V
• Output
• Pb-Free Packages are Available
