MC10EP11

2 Differential, ECL, 3.3 V / 5.0 V

制造商：ON

中文资料及数据手册

在线购买

产品信息

The MC10EP11 is a differential 1 to 2 fanout buffer. The device is pin and functionally equivalent to the LVEL11 device. With AC performance much faster than the LVEL11 device, the EP11 is ideal for applications requiring the fastest AC performance available.
  • 220ps Typical Propagation Delay
  • Maximum Frequency > 3 GHz Typical
  • PECL Mode Operating Range: V
  • = 3.0 V to 5.5 V with V
  • = 0 V
  • NECL Mode Operating Range: V
  • = 0 V with V
  • = -3.0 V to -5.5 V
  • Open Input Default State
  • Safety Clamp on Inputs
  • Q Outputs Will Default LOW with Inputs Open or at V
  • Pb-Free Packages are Available

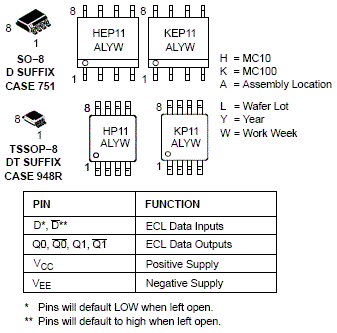

电路图、引脚图和封装图

    MC10EP11电路图
