元器件型号、描述、参数

MC10EP08

 3.3 V / 5.0 V Differential 2-Input XOR/XNOR Gate

制造商：ON

中文资料及数据手册

在线购买

产品信息

The MC10EP08 is a differential XOR/XNOR gate. The EP08 is ideal for applications requiring the fastest AC performance available.
The 100 Series contains temperature compensation.
  • 250 ps Typical Propagation Delay
  • Maximum Frequency > 3 Ghz Typical
  • PECL Mode Operating Range:
  • V
  • = 3.0 V to 5.5 V with V
  • = 0 V
  • NECL Mode Operating Range:
  • V
  • = 0 V with V
  • = -3.0 V to -5.5 V
  • Open Input Default State
  • Safety Clamp on Inputs
  • Q Output Will Default LOW
  • with Inputs Open or at V

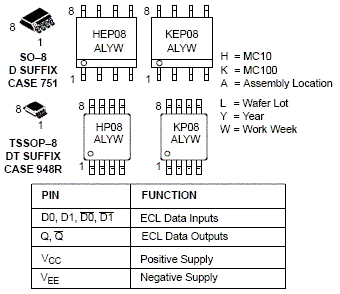

电路图、引脚图和封装图

    MC10EP08电路图
