MC10EP05

 3.3 V / 5.0 V 2-Input Differential AND/NAND Gate

制造商：ON

中文资料及数据手册

在线购买

产品信息

The MC10/100EP05 is a 2-input differential AND/NAND gate.
The device is functionally equivalent to the EL05 and LVEL05
devices. With AC performance much faster than the LVEL05 device,
the EP05 is ideal for applications requiring the fastest AC performance
available.
The 100 Series contains temperature compensation.
  • 220ps Typical Propagation Delay
  • Maximum Frequency > 3 Ghz Typical
  • PECL Mode Operating Range:VCC= 3.0 V to 5.5 V with VEE= 0 V
  • NECL Mode Operating Range: VCC= 0 V with VEE= -3.0 V to -5.5 V
  • Open Input Default State
  • Safety Clamp on Inputs
  • Q Output Will Default LOW with Inputs Open or at V
  • Pb-Free Packages are Available

电路图、引脚图和封装图

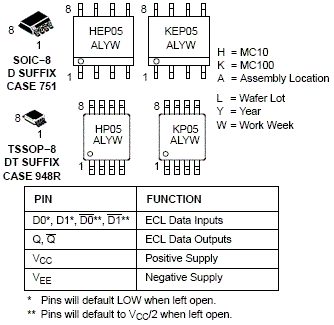

    MC10EP05电路图
