MC10EP01

 3.3 V / 5.0 V ECL 4-Input OR/NOR Gate

制造商：ON

中文资料及数据手册

在线购买

产品信息

The MC10EP01 is a 4-input OR/NOR gate. The device is functionally equivalent to the EL01 device, LVEL01, and E101 (a quad version). With AC performance much faster than the LVEL01device, the EP01 is ideal for applications requiring the fastest AC performance available.
The 100 Series contains temperature compensation.
  • 230ps Typical Propagation Delay
  • Maximum Frequency > 3 GHz Typical
  • PECL Mode Operating Range:
  • V
  • = 3.0 V to 5.5 V with V
  • = 0 V
  • NECL Mode Operating Range:
  • V
  • = 0 V with V
  • = -3.0 V to -5.5 V
  • Open Input Default State
  • Pb-Free Packages are Available

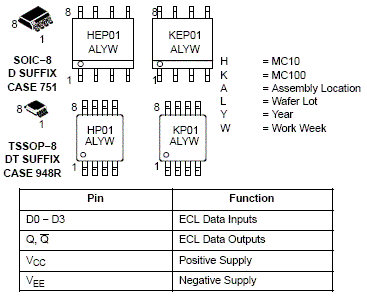

电路图、引脚图和封装图
