MC10EL01

 ECL 4-Input OR/NOR Gate

制造商：ON

中文资料及数据手册

在线购买

产品信息

The MC10EL/100EL01 is a 4-input OR/NOR gate. The device is functionally equivalent to the E101 device with higher performance capabilities. With propagation delays and output transition times significantly faster than the E101 the EL01 is ideally suited for those applications which require the ultimate in AC performance.
The 100 series contains temperature compensation.
  • 230ps Propagation Delay
  • ESD Protection: > 1 KV HBM, > 100 V MM
  • PECL Mode Operating Range: V
  • = 4.2 V to 5.7 V with V
  • = 0 V
  • NECL Mode Operating Range: V
  • = 0 V with V
  • = -4.2 V to -5.7 V
  • Internal Input Pulldown Resistors
  • Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
  • Moisture Sensitivity Level 1
  • For Additional Information, see Application Note AND8003/D
  • Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34
  • Transistor Count = 46 devices
  • Pb-Free Packages are Available

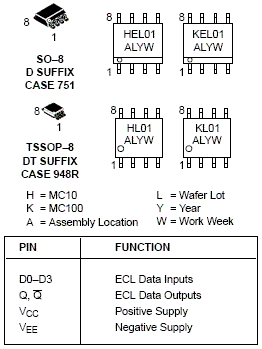

电路图、引脚图和封装图

    MC10EL01电路图
