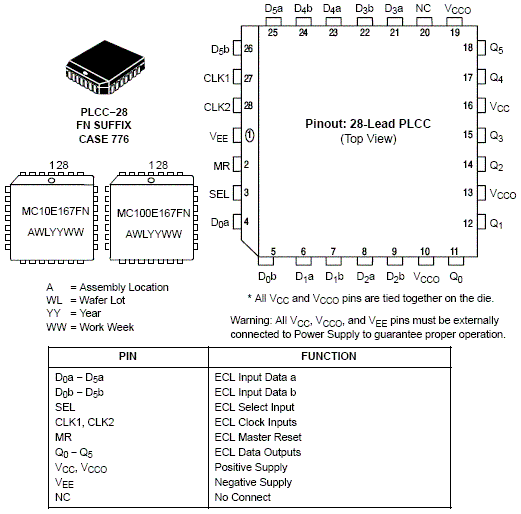

The MC10E/100E167 contains six 2:1 multiplexers followed by D flip-flops with single-ended outputs. Input data are selected by the Select control, SEL. The selected data are transferred to the flip-flop outputs by a positive edge on CLK1 or CLK2 (or both). A HIGH on the Master Reset (MR) pin asynchronously forces all Q outputs LOW.
The 100 Series contains temperature compensation.

• 1000MHz Min. Operating Frequency
• 800ps Max. Clock to Output
• Single-Ended Outputs
• Asynchronous Master Resets
• DualClocks
• PECL Mode Operating Range: V
• = 4.2 V to 5.7 V with V
• = 0 V
• NECL Mode Operating Range: V
• = 0 V with V
• = -4.2 V to -5.7 V
• Internal Input Pulldown Resistors
• ESD Protection: > 1 kV HBM, > 75 V MM
• Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
• Moisture Sensitivity Level 1
• For Additional Information, see Application Note AND8003/D
• Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34
• Transistor Count = 323 devices
• Pb-Free Packages are Available
