MC10E158

1 Multiplexer

制造商：ON

中文资料及数据手册

在线购买

产品信息

The MC10E/100E158 contains five 2:1 multiplexers with differential outputs. The output data are controlled by the Select input (SEL).
The 100 Series contains temperature compensation.
  • 600ps Max. D to Output
  • 800ps Max. SEL to Output
  • Differential Outputs
  • One V
  • Pin Per Output Pair
  • PECL Mode Operating Range: V
  • = 4.2 V to 5.7 V with V
  • = 0 V
  • NECL Mode Operating Range: V
  • = 0 V with V
  • = -4.2 V to -5.7 V
  • Internal Input Pulldown Resistors
  • ESD Protection: > 2 kV HBM, > 200 V MM
  • Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
  • Moisture Sensitivity Level 1
  • For Additional Information, see Application Note AND8003/D
  • Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34
  • Transistor Count = 126 devices
  • Pb-Free Packages are Available

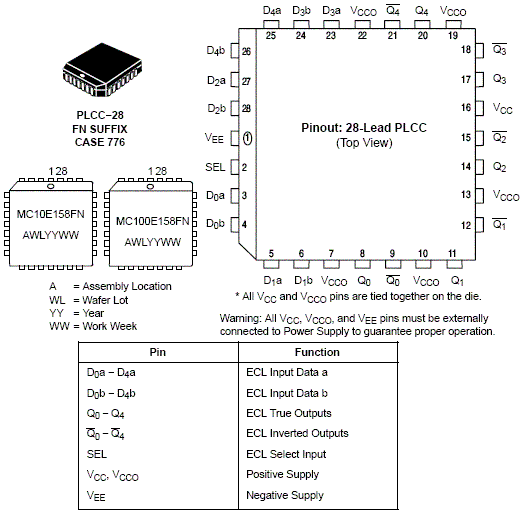

电路图、引脚图和封装图

    MC10E158电路图
