The MC100LVELT23 is a dual differential LVPECL to LVTTL translator. Because LVPECL (Positive ECL) levels are used only +3.3V and ground are required. The small outline 8-lead SOIC package and the dual gate design of the LVELT23 makes it ideal for applications which require the translation of a clock and a data signal.

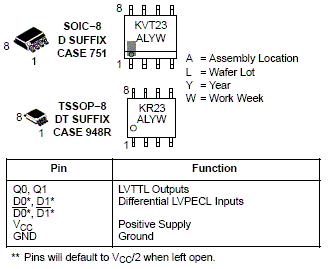

The LVELT23 is available in only the ECL 100K standard. Since there are no LVPECL outputs or an external V
reference, the LVELT23 does not require both ECL standard versions. The LVPECL inputs are differential; there is no specified difference between the differential input 10H and 100K standards. Therefore, the MC100LVELT23 can accept any standard differential LVPECL input referenced from a V
of 3.3V.

• 2.0ns Typical Propagation Delay
• Maximum Frequency > 180 MHz
• Differential LVPECL Inputs
• PECL Mode Operating Range: V
• = 3.0 V to 3.8 V with GND= 0 V
• 24 mA LVTTL Outputs
• Flow Through Pinouts
• Internal Pulldown Resistors
• Q Output will default LOW with inputs open or at GND
• ESD Protection: >1.5 KV HBM, >100 V MM
• Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
• Moisture Sensitivity Level 1
• For Additional Information, see Application Note AND8003/D
• Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34
• Transistor Count = 91 devices
• Pb-Free Packages are Available
