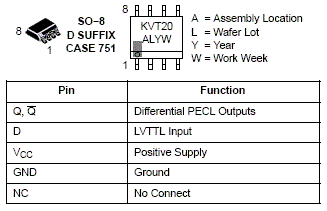

The MC100LVELT20 is a 3.3 V TTL/CMOS to differential PECL translator. Because PECL (Positive ECL) levels are used, only +3.3 V and ground are required. The small outline SOIC−8 package and the single gate of the MC100LVELT20 makes it ideal for those applications where space, performance, and low power are at a
premium.
The 100 Series contains temperature compensation.

• 390 ps Typical Propagation Delay
• Maximum Input Clock Frequency > 0.8 GHz Typical
• Operating Range VCC = 3.0 V to 3.6 Vwith GND = 0 V
• PNP TTL Input for Minimal Loading
• Pb-Free Packages are Available
