The MC100LVEL17 is a 3.3 V ECL, quad differential receiver. The device is functionally equivalent to the E116 device with the capability of operation from either a -3.3 V or +3.3 V supply voltage.
Under open input conditions, the Dbar input will be biased at V
/2 and the D input will be pulled down to V
. This operation will force the Q output LOW and ensure stability.
The V
pin, an internally generated voltage supply, is available to this device only. For single-ended input conditions, the unused differential input is connected toV
as a switching reference voltage.V
may also rebias AC coupled inputs. When used, decoupleV
and V
via a 0.01 F capacitor and limit current sourcing or sinking to 0.5 mA. When not used,V
should be left open.

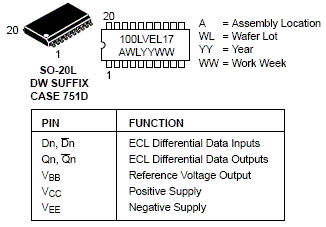

• 325 ps Propagation Delay
• High Bandwidth Output Transitions
• ESD Protection: >2 KV HBM
• The 100 Series Contains Temperature Compensation
• PECL Mode Operating Range: V
• = 3.0 V to 3.8 V with V
• = 0 V
• NECL Mode Operating Range: V
• = 0 V with V
• = -3.0 V to -3.8 V
• Internal Input Pulldown Resistors
• Q Output will Default LOW with Inputs Open or at V
• Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
• Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34
• Transistor Count = 141 devices
