The MC100LVEL13 is a dual, fully differential 1:3 fanout buffer. The MC100EL13 is pin and functionally equivalent to the MC100LVEL13 but is specified for operation at the standard 100E ECL voltage supply. The Low Output-Output Skew of the device makes it ideal for distributing two different frequency synchronous signals.
The differential inputs have special circuitry which ensures device stability under open input conditions. When both differential inputs are left open the D input will pull down to V
, The Dbar input will bias around V
/2 and the Q output will go LOW.

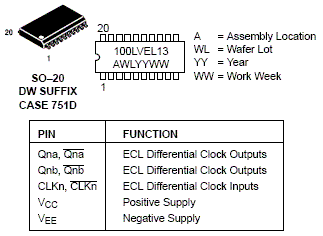

• 500 ps Typical Propagation Delays
• 50 ps Output-Output Skews
• The 100 Series Contains Temperature Compensation
• PECL Mode Operating Range: V
• = 3.0 V to 3.8 V with V
• = 0 V
• NECL Mode Operating Range: V
• = 0 V with V
• = -3.0 V to -3.8 V
• Internal Input Pulldown Resistors
• Q Output will Default LOW with Inputs Open or at V
• Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
• Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34
• Transistor Count = 143 devices
