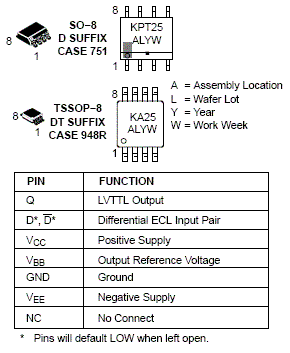

The MC100EPT25 is a Differential LVECL/ECL to LVTTL translator. This device requires +3.3V, -3.3V to -5.2V, and ground. The small outline 8-lead SOIC package and the single gate of the EPT25 make it ideal for applications which require the translation of a clock or data signal.
The V
output allows the EPT25 to also be used in a single-ended input mode. In this mode the V
output is tied to the D input for a inverting buffer or the Dbar input for a non-inverting buffer. If used, the V
pin should be bypassed to ground with at least a 0.01 µF capacitor.

• 1.1ns Typical Propagation Delay
• Maximum Frequency > 275 MHz Typical
• Operating Range: V
• = 3.0 V to 3.6 V; V
• = -5.5 V to -3.0 V; GND = 0 V
• 24mA TTL outputs
• Q Output will default LOW with inputs open or at GND
• V
• Output
• Open Input Default State
• Safety Clamp on Inputs
• Pb-Free Packages are Available
