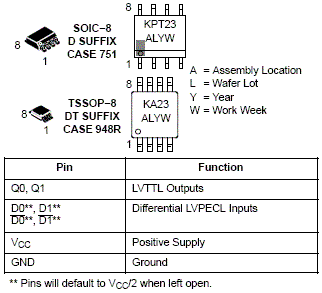

The MC100EPT23 is a dual differential LVPECL/LVDS/CML to LVTTL/LVCMOS translator. Because LVPECL/LVDS/CML input levels and LVTTL/LVCMOS output levels are used only +3.3V and ground are required. The small outline 8-lead SOIC package and the dual gate design of the EPT23 makes it ideal for applications which require the translation of a clock and a data signal.
The EPT23 is available in only the ECL 100K standard. Since there are no LVPECL outputs or an external V
reference, the EPT23 does not require both ECL standard versions. The LVPECL inputs are differential. Therefore, the MC100EPT23 can accept any standard differential LVPECL input referenced from a V
of +3.3V.

• 1.5ns Typical Propagation Delay
• Maximum Operating Frequency > 275MHz
• 24mA LVTTL Outputs
• Operating Range: V
• = 3.0 V to 3.6 V with GND = 0 V
• Open Input Default State
• Q Output will default LOW with inputs open or at GND
• Pb-Free Packages are Available
