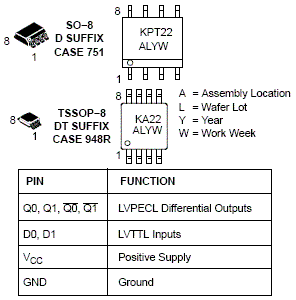

The MC100EPT22 is a dual LVTTL/LVCMOS to differential LVPECL translator. Because LVPECL (Positive ECL) levels are used only +3.3V and ground are required. The small outline 8-lead SOIC package and the single gate of the EPT22 makes it ideal for those applications where space, performance, and low power are at a premium. Because the mature MOSAIC 5 process is used, low cost and high speed can be added to the list of features.

• 420 ps Typical Propagation Delay
• Maximum Frequency > 1.1 GHz
• Operating Range: V
• = 3.0 V to 3.6 V with GND = 0 V
• PNP LVTTL Inputs for Minimal Loading
• Q Output will default HIGH with inputs open
• The 100 Series contains temperature compensation.
• Pb-Free Packages are Available
