LV8713T

 Stepping Motor Driver, PWM, Constant Current Control

制造商：ON

中文资料及数据手册

在线购买

产品信息

The LV8713T is a microstepping motor driver with built-in translator for easy operation.It supports full-step, half-step, 1/16-step, and 1/32-step resolution.The LV8713T is optimal for driving stepping motors of scanners and small printers.
  • Control mode can be set to 2-phase, 1-2 phase, 4W1-2 phase , or 8W1-2 phase
  • Microstep can control easily by the CLK-IN input.
  • Stand-by Current: 0uA
  • TSSOP24 Package
  • Single-channel PWM constant-current control stepping motor driver incorporated.
  • VM max = 18V
  • IO max = 0.8A
  • RON = 1.1 (upper and lower total, typical, Ta = 25C )
  • A thermal shutdown circuit and a low voltage detecting circuit are built into

电路图、引脚图和封装图

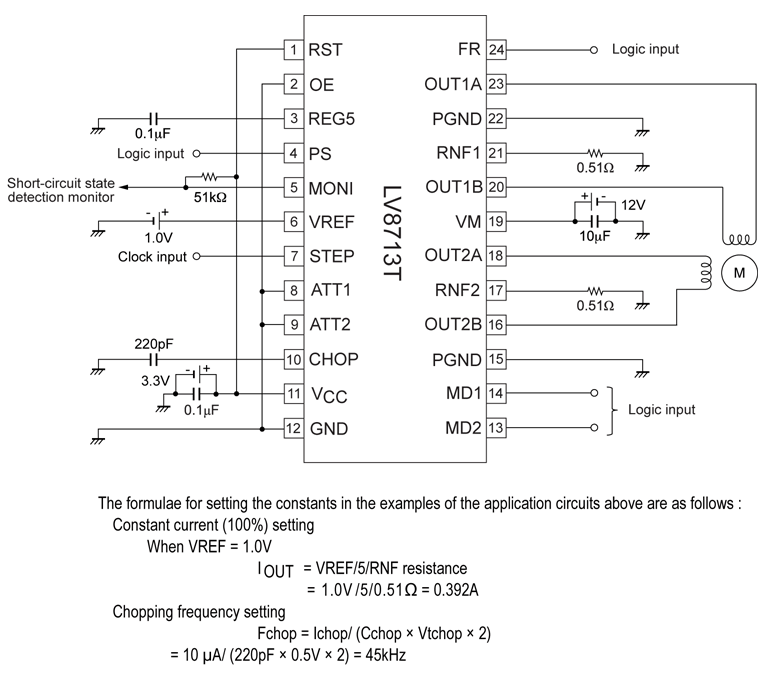

    LV8713T电路图
