LV8127T

 3-phase Bipolar PWM Drive Pre-Driver IC for Brushless Motor Drive

制造商：ON

中文资料及数据手册

在线购买

产品信息

LV8127T is a three-phase bipolar PWM drive pre-driver IC for N-channel High-side and Low-side FETs. This IC is optimized for low cost, high-efficiency drive circuits in applications that use motors with high drive currents. It offers high supply voltage capability and a high degree of flexibility.
  • User programmable output current limit
  • Built-in protection circuits for Over temperature (OTP), Under Voltage Lock Out (UVLO), Locked rotor (CSD)_and Output Current limit
  • Built-in Forward/Reverse direction control
  • Built-in 5V regulator output
  • Built-in 15V reference zener diode
  • Hall IC input
  • E-Brake function

电路图、引脚图和封装图

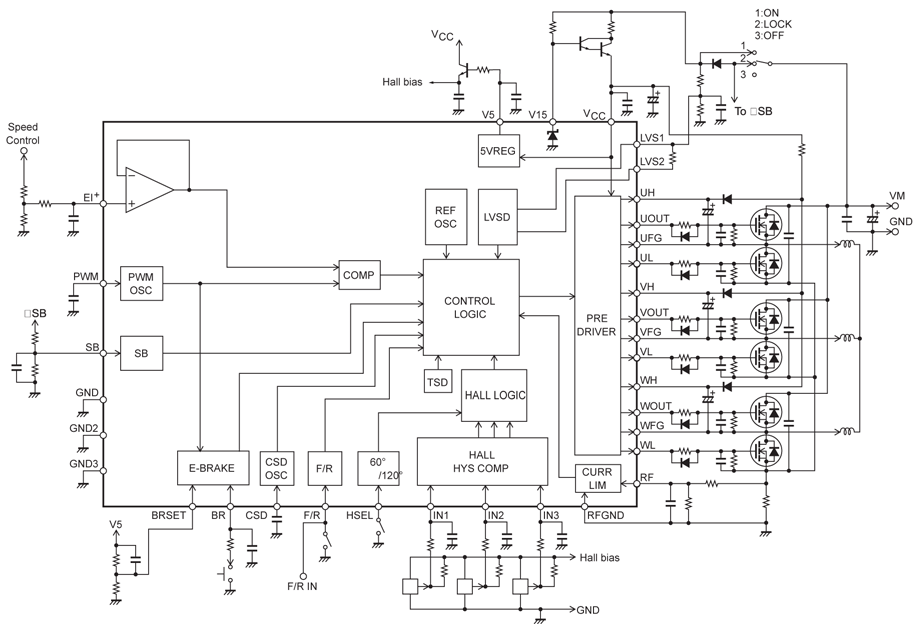

    LV8127T电路图
