The LMV331 is a single channel, general purpose, low voltage comparator. The LMV393 and LMV339 are dual and quad channel versions, respectively. The LMV331/393/339 are specified for 2.7V to 5.0 volt performance, have excellent input common-mode range, low quiescent current, and are available in several space saving packages.

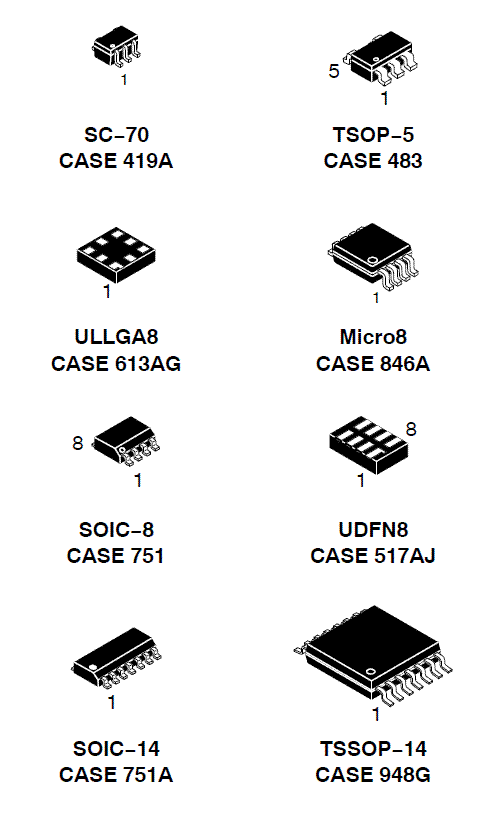

The LMV331 is available in a 5-pin SC70 and a TSOP-5 package, the LMV393 is available in an 8-pin Micro8 and a SOIC-8 package, and the LMV339 is available in a 14-pin SOIC14 and a TSSOP14 package.
The LMV331/393/339 are cost effective solutions for applications where space saving, low voltage operation, and low power are the primary specifications in circuit design for portable applications.

• Guaranteed 2.7 V and 5.0 V Performance
• Input common-mode voltage range extends to ground
• Open drain output for Wired-OR applications
• Low Quiescent Current: 60 A/channel TYP @ 5.0 V
• Low Saturation Voltage 200 mV TYP @ 5.0 V
• Propagation Delay 200 ns TYP @ 5.0 V
